Embossing Machine

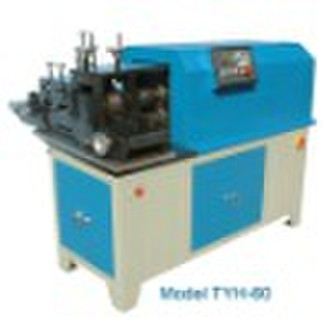

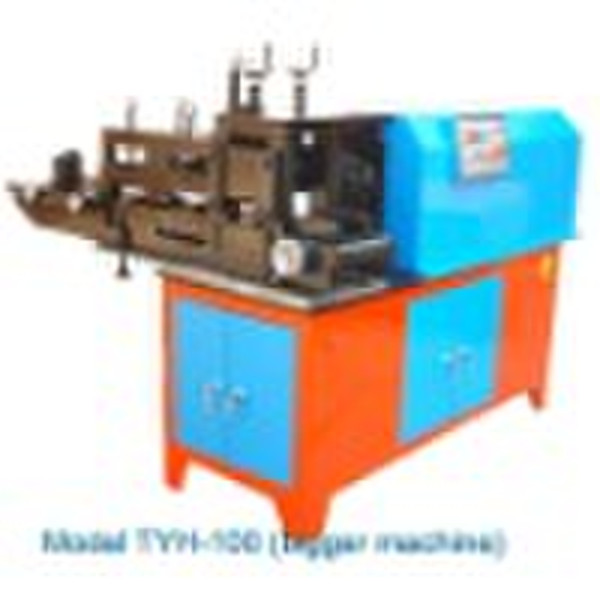

Embossing Machines are the special equipment for cold pressing production of wrought iron materials (forged iron materials), which adopt imported inverter technique with high bearing capacity and various mold patterns and are equipped with different patterns of so as to roll form different patterns on flat steel, square steel, round steel, square pipe and special pipe of certain specifications. There are two models for embossing machine, Model TYH-100 is oversize equipment with higher processing capacity than Model TYH-60, thusTYH-100 can roll form 100×100mm square pipe and special pipe into upright stanchion so as to achieve the high efficiency and energy saving effect. Items Model TYH-60 Processing Capacities Model TYH-100 Processing Capacities Processing Capacities Flat Steel 12×3 to 60×10 mm 12×3 to 100×10 mm Square Steel 10×10 to 25×25 mm 10×10 to 30×30 mm Round Steel Φ10to Φ20 mm Φ10to Φ30 mm Square Tube 15×15to 60×60 mm 15×15to 100×100 mm Rectangular Steel Pipe 15×20to 60×40mm 15×20to 100×80 mm Motor Electricity: 380V 50HZ Power: 7.5kw Rotating Speed: 1500r/min Decelerator for Cycloidal Pin wheel Out put rotation speed of main shaft:35r/min Gear Ration: 1:43 Adopting frequency acceleration technology introduced from abroad; External Size (L×W×H) 1700×1150×1260 mm 1700×1500×1460 mm Packing Size (L×W×H) 1840×950×1400 mm 1880×1080×1410 mm Net Weight (kg) 1098 kg 1260 kg Gross Weight (kg) 1260 kg 1380 kg
