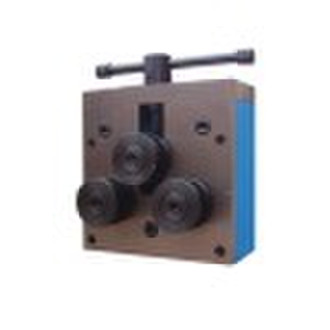

multi-functional wrought iron machine

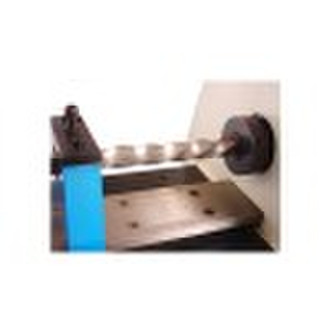

The Model TDW-30 multi-functional wrought iron machineis an equipment specially designed and manufactured for small size wrought iron processing factory by us, it can be used in circling, scroll forming and twisting, and Such machine can also be equipped with the lantern auxiliary unit manufactured by our factory to twist lantern (birdcage) or the fishtail auxiliary unit to coin fishtail pattern. With multi-purpose, easy installation & demounting, smooth driving, simple operation and low cost, this machine is the most ideal choice for small size wrought iron processing factory. Item Technical parameters and capacitiesMaterialsLow carbon metal (tensile strength ≤235z/2)Processing Capacities (mm)FormingFlat steel30×5Round steelΦ12Square steel12×12TwistingSquare steel20×20Flat steel30×10ScrollingRound tubeΦ30×1Square pipe30×30×1Rectangular pipe30×8The rotation speed ofthe main shaft12rpmThe height between the shaftand lead-rail148Dimension of the work-platform1000×400The cyclical pin-wheel hight-differential-rotation-ratio motorPower1.1kwRotating-speed910rpmVoltage380vFrequency50HZExternal Dimension (mm) 1560×570×1210 mm Packing Dimension (mm)1690×650×1320 mmNet Weight (kg)512 kgGross Weight (kg)560 kg
